Hydraulic Wall Saw Machine

Hydraulic Wall Saw Machine

Product Introduction

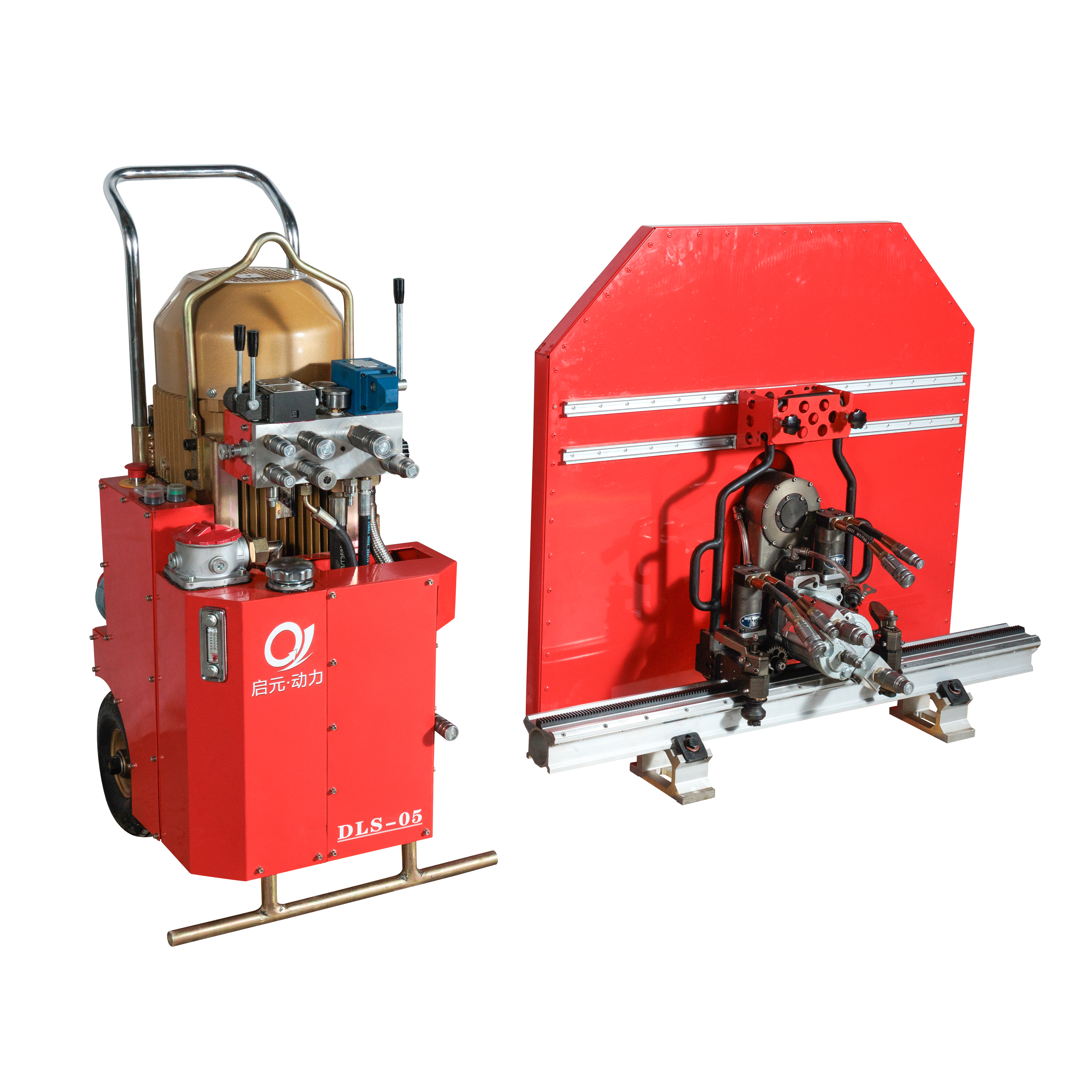

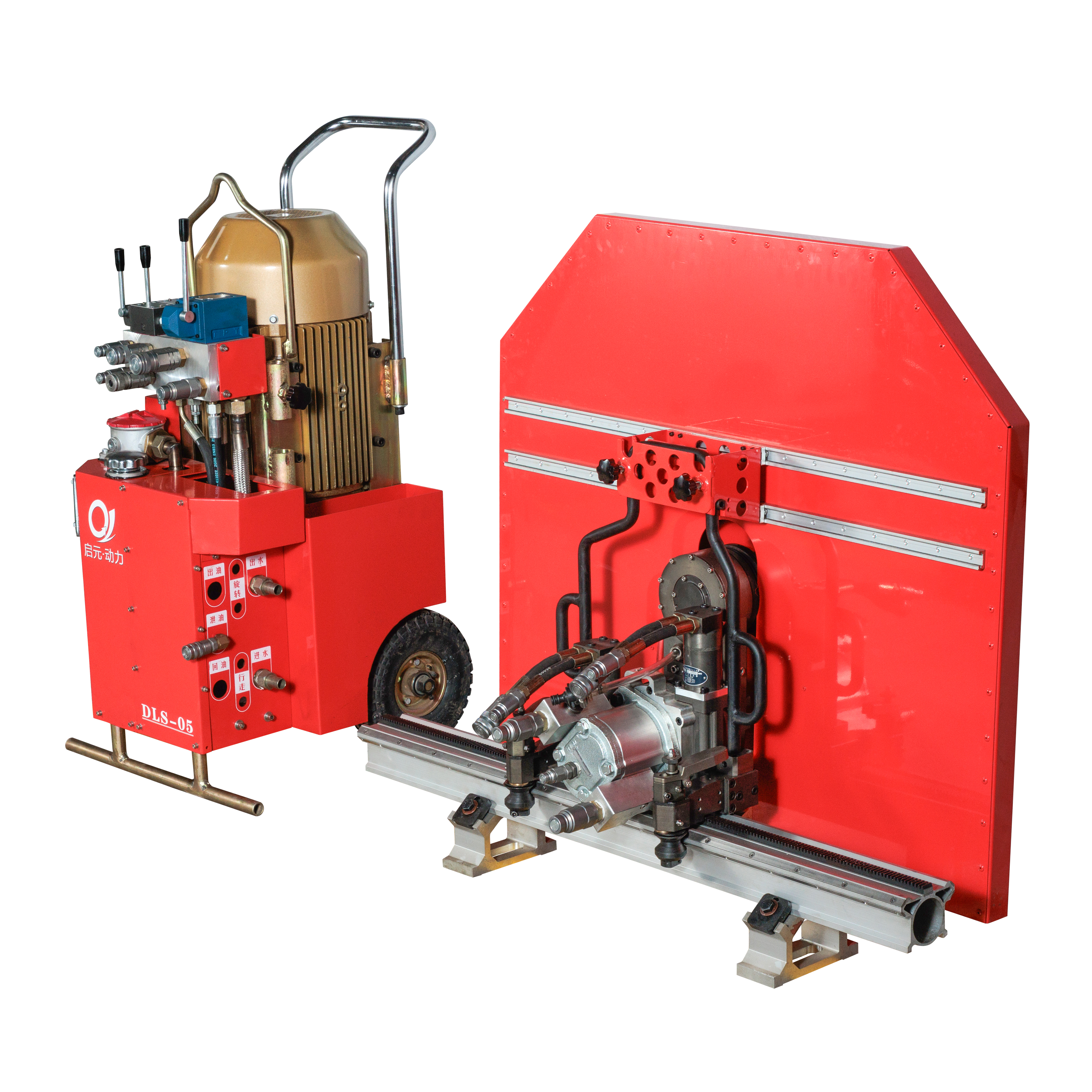

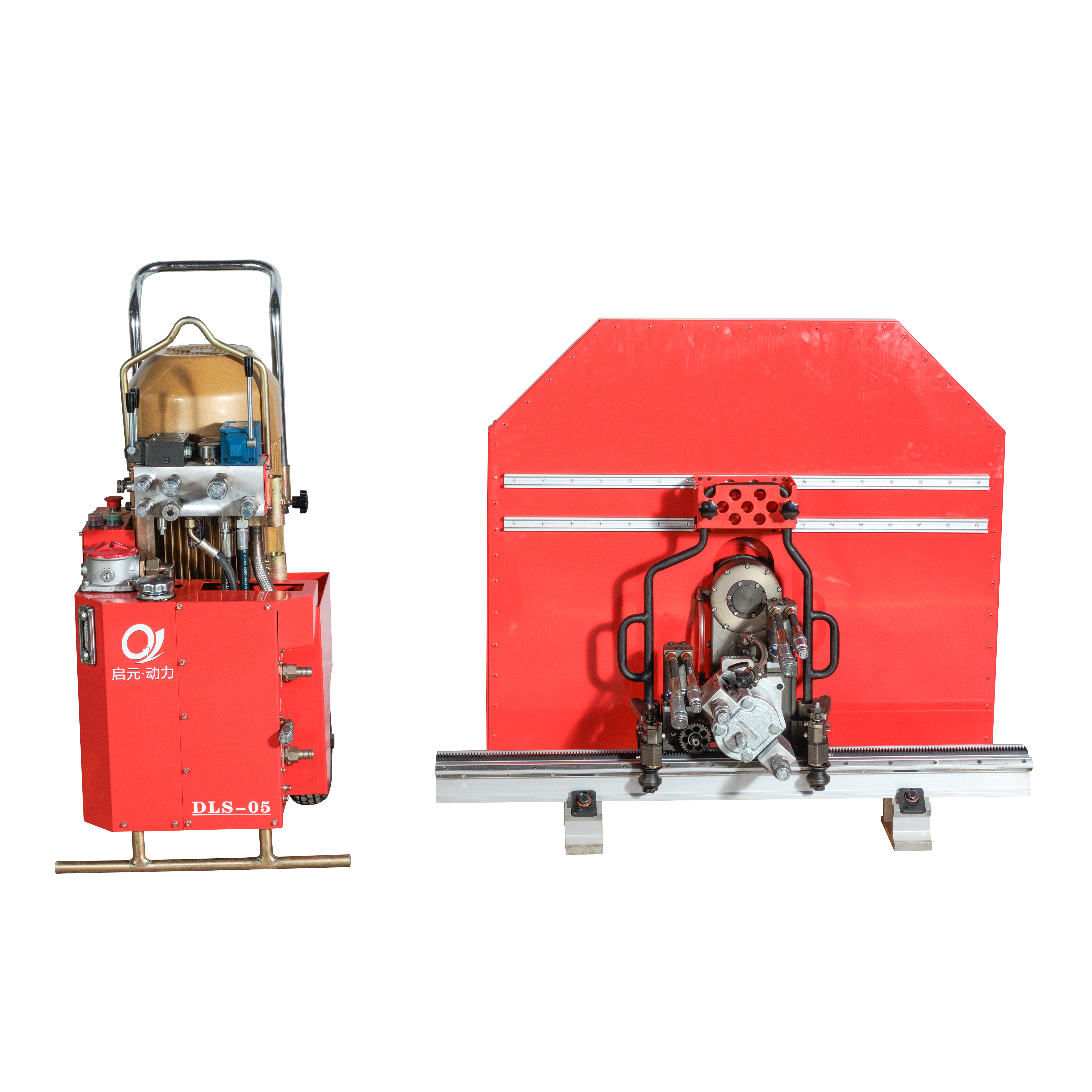

The hydraulic wall saw machine is professional heavy-duty static cutting equipment for concrete demolition and renovation projects. It is widely used in densely reinforced concrete wall cutting, beam & slab dismantling, building opening modification, bridge pier trimming, tunnel partial cutting and stone block processing. Driven by mature hydraulic power system, the machine delivers powerful cutting torque, steady running performance and neat cutting seam with zero vibration, making it an optimal option for urban reconstruction, precision building demolition and heavy engineering renovation.

Core Advantages

Hydraulic Drive with Strong Cutting Power

Adopts premium hydraulic drive system with max working pressure up to 200bar and stable oil flow output. It easily cuts thick concrete embedded with dense steel reinforcement, maintains constant power without performance drop during long-hour continuous cutting to significantly boost construction progress.

Static Cutting, Safe and Eco-Friendly

Zero vibration, no striking force and low noise in cutting process, which avoids cracking or damaging original surrounding building structures. It fully satisfies strict environmental and safety standards for downtown indoor reconstruction, old building renovation and precision demolition works.

Lightweight Durable Structure and Extended Service Life

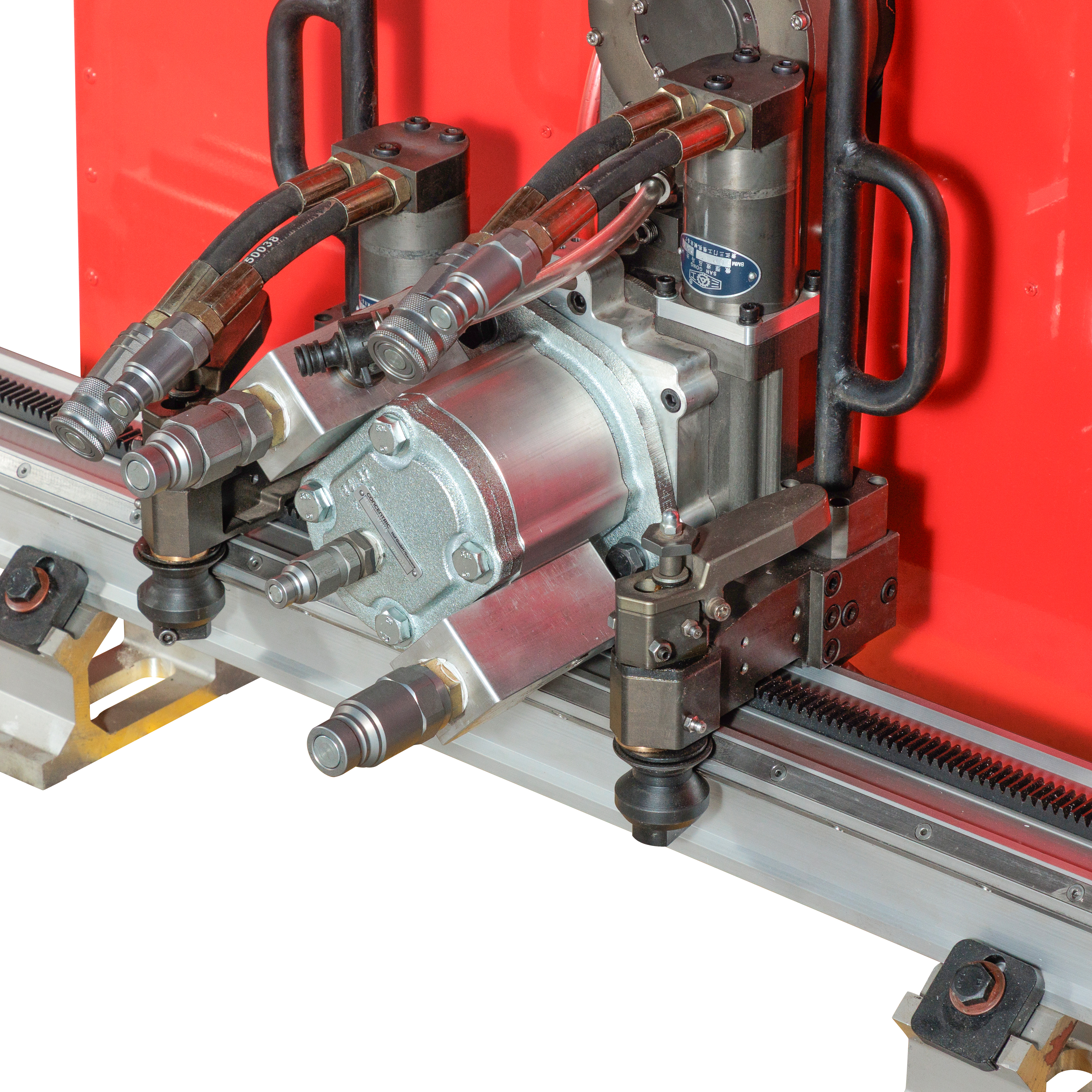

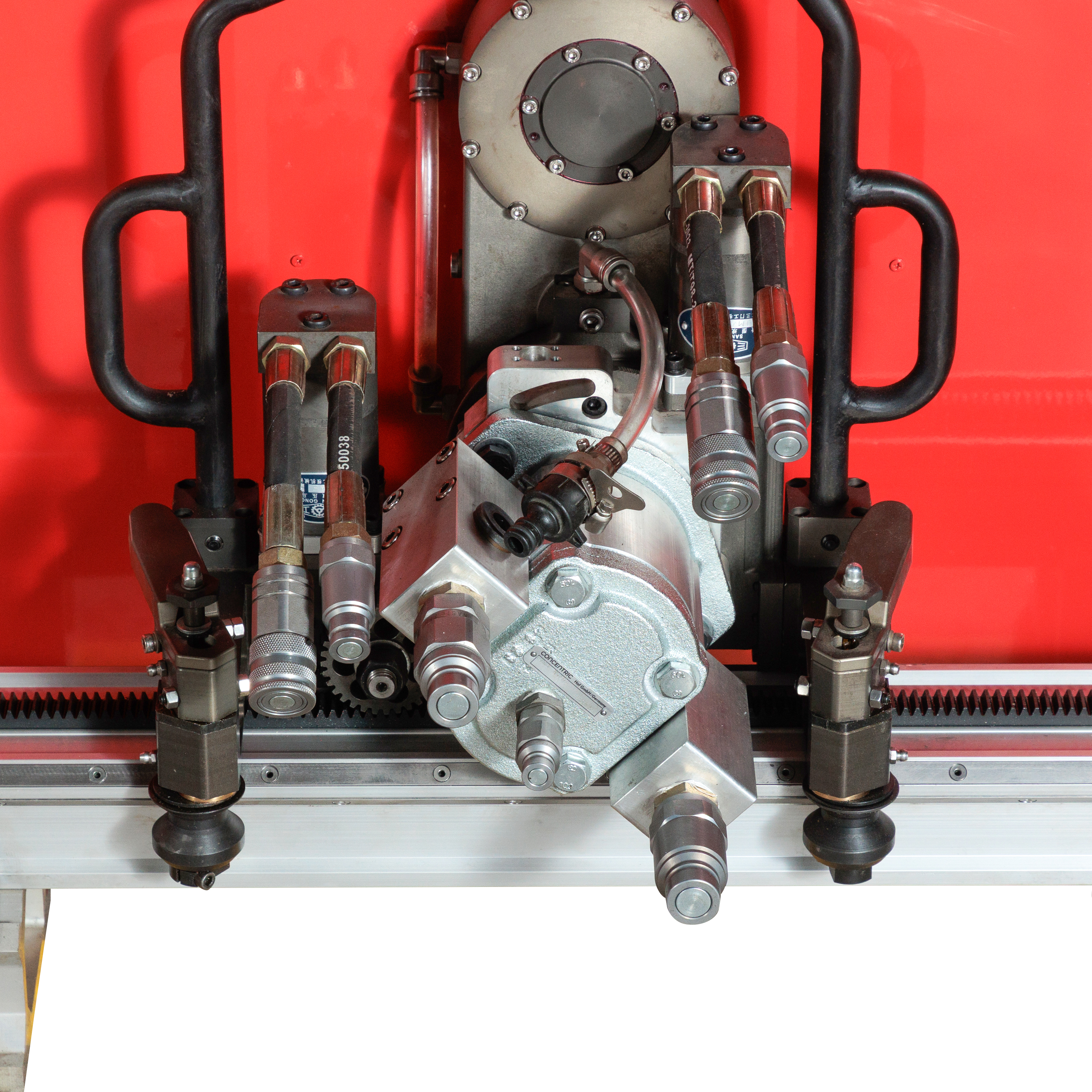

Guide rail is made of magnesium-titanium lightweight aluminum alloy featuring high strength and abrasion resistance; core hydraulic motor is elaborately crafted for stable heat dissipation to support non-stop heavy-load operation. Optimized swing arm feed structure lowers abrasion on saw blade and key fittings to prolong overall machine service lifespan.

Flexible Setup & Excellent Site Adaptability

360° rotary swing arm feed design plus two-speed shift operation for flexible parameter adjustment to fit varied concrete and stone materials. Compact lightweight saw head (only 36kg) and split guide rail (1.2m/11kg, 2.4m/22kg) enable quick installation and construction within narrow rooms, high-rise overhead positions and limited construction zones. Compatible with saw blades from 800mm to 1600mm diameter, max cutting depth reaches 630mm to fulfill various cutting depth demands.

Complete Pressure Protection & Low Maintenance Cost

Built-in hydraulic overload pressure protection system prevents overload breakdown to secure on-site construction safety. Standardized specification of wearing parts including saw blade, flange and seals allows fast replacement, effectively cutting daily maintenance and spare parts expenditure.

Applications

Building reconstruction: precision cutting & opening of reinforced concrete bearing walls, beams, floor slabs for house renovation and elevator shaft installation

Bridge engineering: partial cutting, dismantling and trimming of bridge piers, abutments, anti-collision walls and bridge decks

Stone industry: granite & marble slab cutting, large stone block splitting and shaping

Special engineering: tunnel inner wall cutting, basement enlargement, dock concrete component trimming

Special conditions: high-altitude wall cutting, narrow confined-space construction, downtown noise-restricted demolition projects

Quality Assurance

Manufactured following strict industrial standards, every unit passes rigorous hydraulic pressure, full-load running and cutting performance inspection before factory delivery.

Core hydraulic components adopt qualified premium parts to adapt long-term continuous high-intensity engineering operations.

We provide professional on-site installation, commissioning, operator training and full after-sales technical support.

Compatible with multiple sizes of cutting saw blades to supply customized one-stop concrete cutting solutions for global clients.
