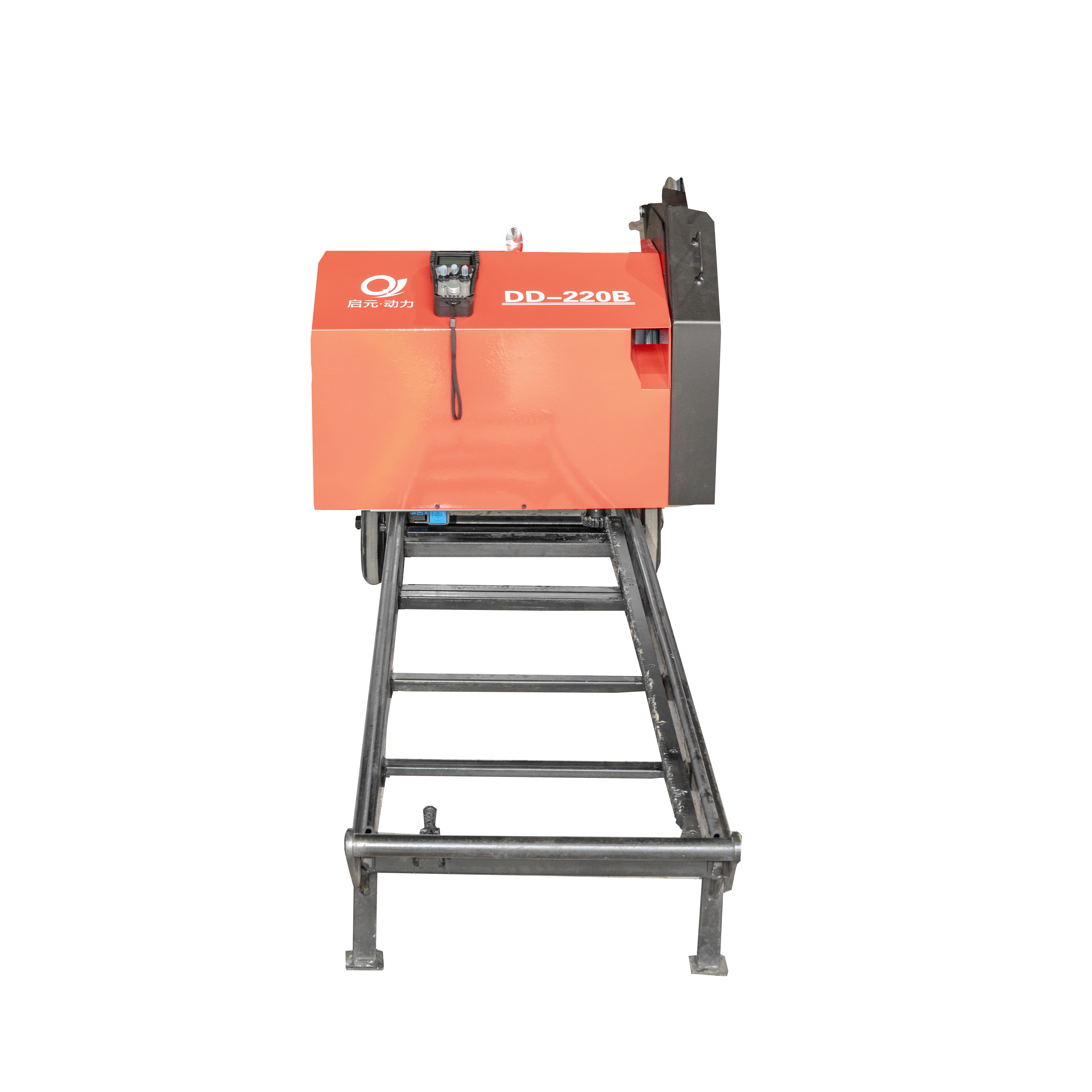

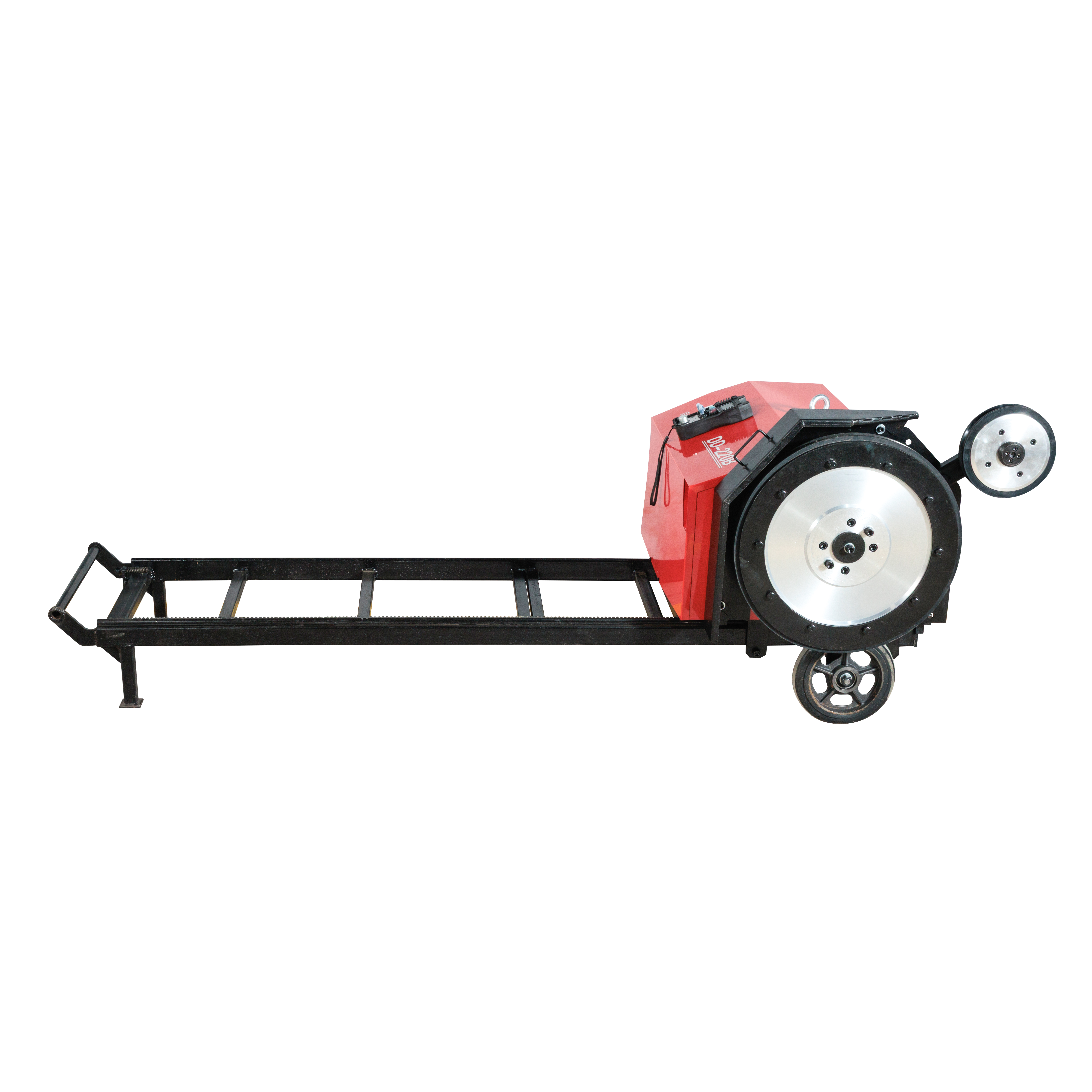

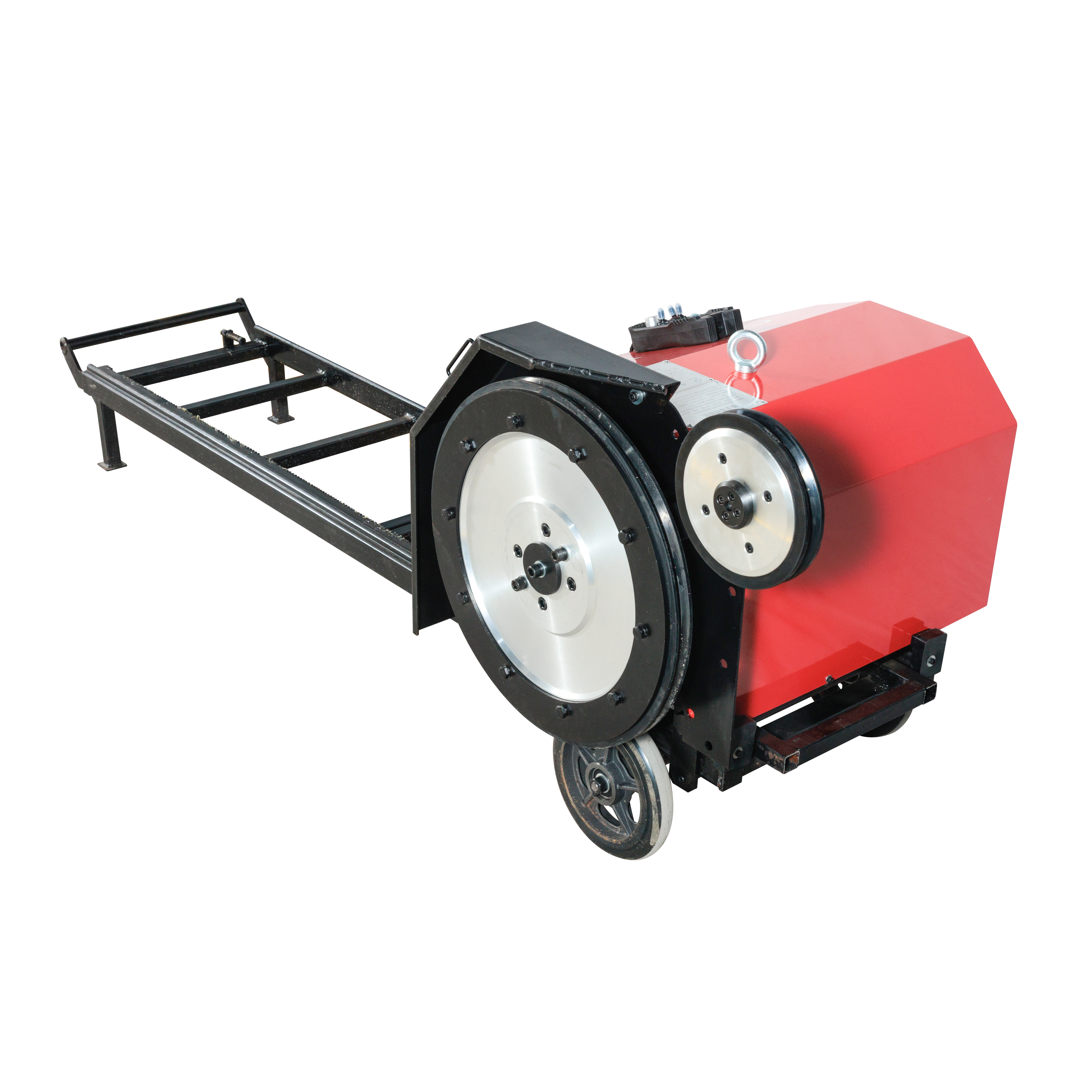

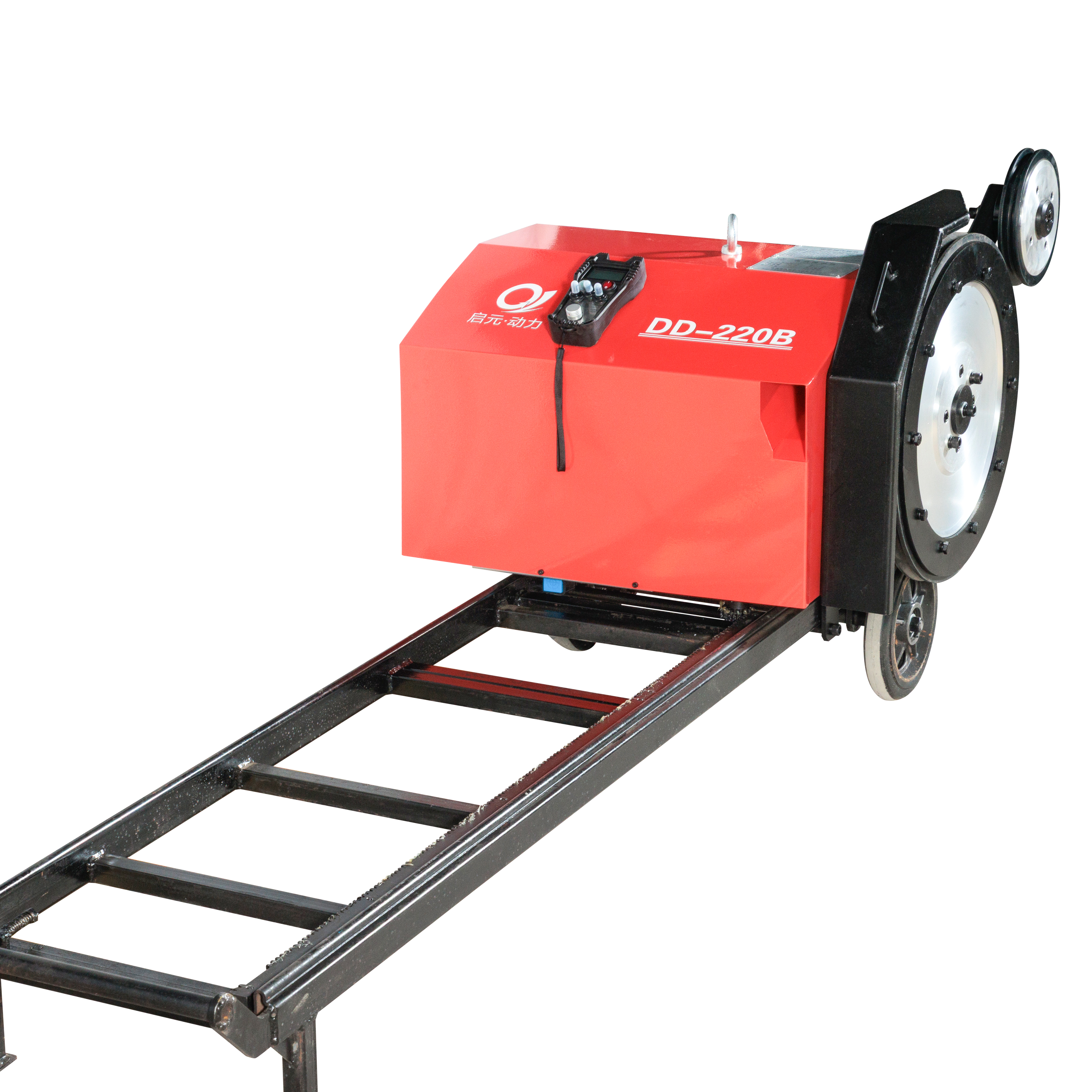

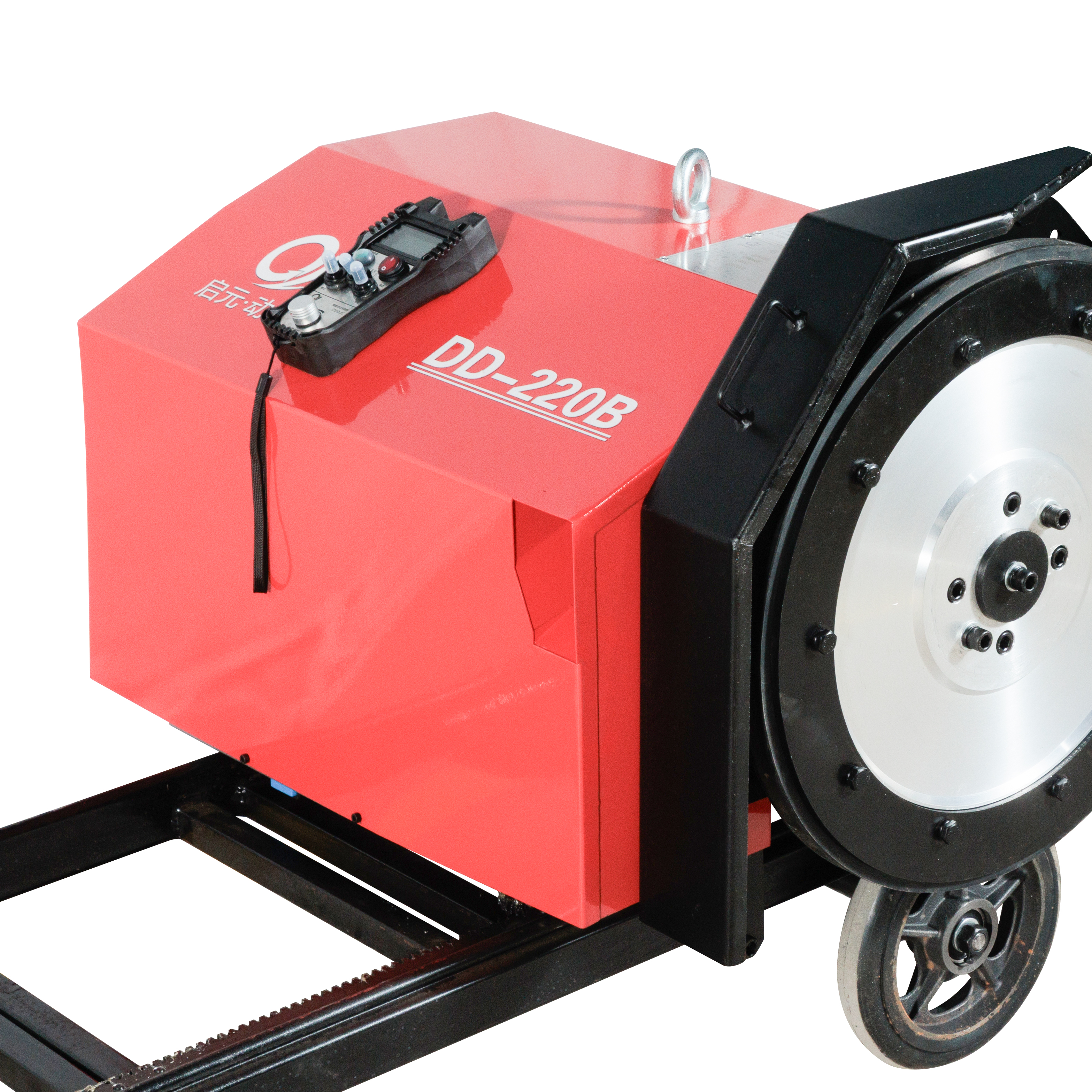

Electric Diamond Wire Saw Machine
Wire Driving Mode | Electric |
Wire Tightening Mode | Electric |
Main Motor Power | 22KW |
Spindle Output Speed | 975 R/MIN |
Maximum Wire Linear Speed | 25.5 M/S |
Maximum Driving Wheel Size | 500 mm |
Working Voltage | 380 V |
Voltage Frequency | 50 HZ |
Wiring Requirement | 10 mm² 3-phase 5-wire |
Total Weight | 350KG |
Overall Dimensions | 800x800x2100mm |
Product Introduction
The electric diamond wire saw machine is a professional equipment designed for medium and heavy-duty static cutting projects. It is widely used in reinforced concrete cutting and demolition, bridge reconstruction, pier cutting, wall static cutting, stone mining, large component cutting and other applications. Driven by electric power, the machine features compact size, flexible movement, high cutting efficiency, safe and eco-friendly performance with low noise, making it an ideal choice for urban construction, indoor renovation, building demolition and stone processing.
Core Advantages
Electric Drive, Efficient & Stable Power
Adopts high-performance electric motor with stable continuous power output. It handles medium to high-intensity cutting conditions such as reinforced concrete, thick walls and large stones, with consistent performance and no power attenuation during continuous operation, significantly improving construction efficiency.
Compact & Lightweight, Flexible Operation
Small in size, lightweight and easy to move, allowing quick deployment on different job sites. The integrated base ensures stable operation, while the rack-and-pinion travel mechanism delivers efficient and durable performance for long working hours.
Safe & Eco-Friendly Static Cutting
No vibration, no impact and low noise during cutting, which will not damage surrounding structures. It meets strict environmental and safety requirements for urban construction, indoor renovation and precision demolition projects.
Multi-Angle Adjustment & Convenient Control
Features 270° rotatable protective cover, guide wheels can be installed front or rear, allowing arbitrary adjustment of cutting angles. Supports safe remote control operation, with wired emergency stop function for added reliability.
Reliable Protection & Easy Maintenance
Equipped with built-in electrical box protection to prevent motor burnout, ensuring long-term operational safety. The modular structure design makes daily maintenance simple, with easy-to-replace wearing parts to reduce overall operating costs.
Applications
Building reconstruction: static cutting and demolition of reinforced concrete beams, columns, slabs and walls
Bridge engineering: cutting and reconstruction of bridge piers, abutments, anti-collision walls and bridge decks
Urban construction: indoor renovation, wall opening, and partial structure removal
Stone industry: marble and granite mining, block shaping and processing
Special conditions: narrow space operation, noise-restricted areas, and quick-turnaround construction projects
Quality Assurance
Manufactured with high-standard technology, with strict running, load and safety tests before delivery
Stable core electric components, suitable for long-term medium and high-intensity engineering operations
Professional installation, commissioning, operation training and complete after-sales service provided
Supports various specifications of diamond wire saws, offering one-stop cutting solutions
