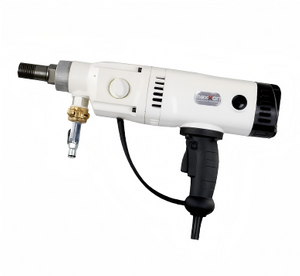

Hand held core drilling motor DBC‑33

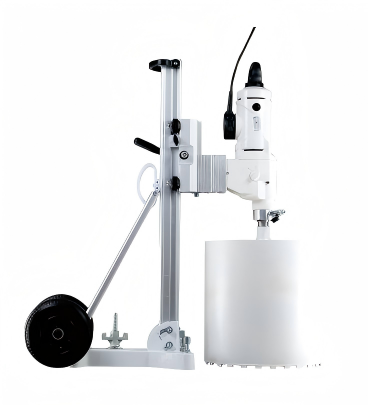

DBC‑33 is high‑power diamond core drilling motor with 3300W power, supporting 110V/220V dual‑voltage. Max concrete drilling diameter reaches 400mm. It adopts 3‑speed shifting, high‑accurate gear box and new‑material armature. Equipped with soft‑start function, dual protection of electric‑clutch overload protection and mechanical slipping clutch. Built‑in PRCD leakage protection, with oil level indicator for oil‑change maintenance. It supports free‑hand operation or drill‑rig mounting. Optional accessories: pressure water tank, wet‑dry vacuum cleaner, vacuum pump and water collecting ring. Ideal for heavy‑duty large‑diameter concrete hole‑opening projects.

Model:
Handheld core drilling motor BL18M
Brand:
LINK

Availability:

Quantity:



Inquire Add to Basket

Diamond core drill Drilling rig motor Diamond core drill Machine

Product Description

Art number	Power	Voltage
1113033	3300W	110V/220V
Max.φconcrete	Speed	Weight
400mm	400/800/1200rpm	3.5KG

	1‑SPEED	2‑SPEED	3‑SPEED
Speed(RPM)	400	800	1200
Max.φconcrete(mm)	400	200	100

DBC‑33 is high‑power diamond core drilling motor with 3300W power, supporting 110V/220V dual‑voltage. Max concrete drilling diameter reaches 400mm. It adopts 3‑speed shifting, high‑accurate gear box and new‑material armature. Equipped with soft‑start function, dual protection of electric‑clutch overload protection and mechanical slipping clutch. Built‑in PRCD leakage protection, with oil level indicator for oil‑change maintenance. It supports free‑hand operation or drill‑rig mounting. Optional accessories: pressure water tank, wet‑dry vacuum cleaner, vacuum pump and water collecting ring. Ideal for heavy‑duty large‑diameter concrete hole‑opening projects.
