Art number | Power | Voltage | Max.φconcrete |
1113022 | 2200W | 110V/220V | 160mm |
Max.φstone | Speed | spindle | Weight |
200mm | 580/1400/2800rpm | G1/2"-1‑1/4" | 8.5KG |
| 1‑SPEED | 2‑SPEED | 3‑SPEED |
Speed(RPM) | 580 | 1400 | 2800 |
Max.φconcrete(mm) | 160 | 80 | 40 |
Max.φstone(mm) | 200 | 100 | 60 |

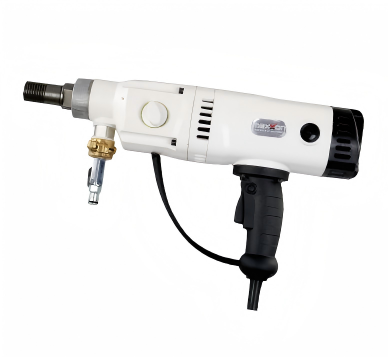

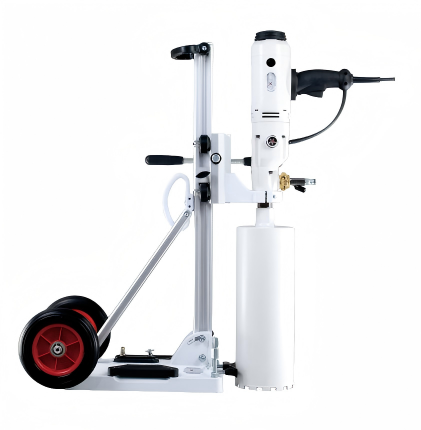

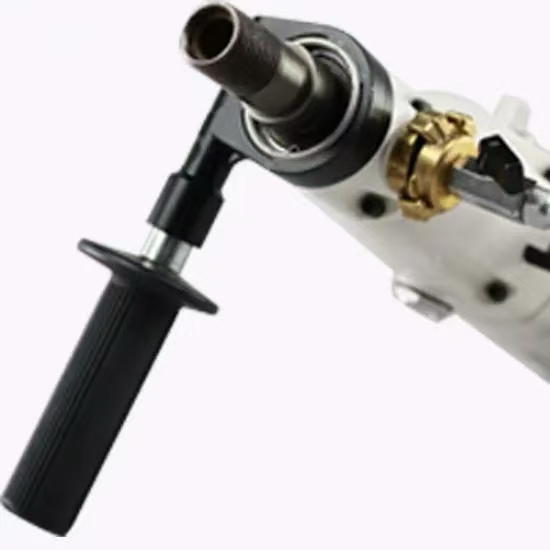

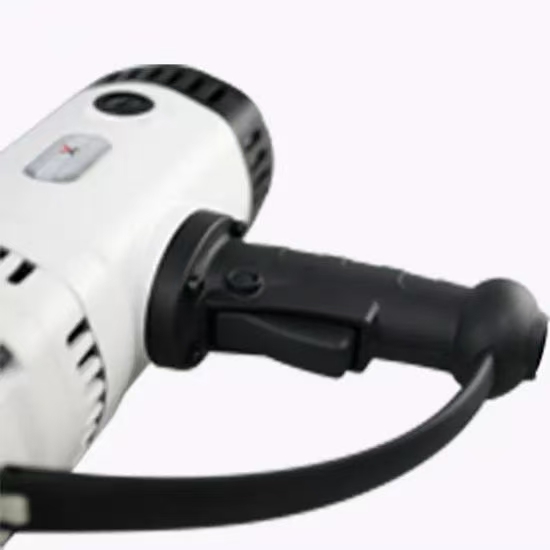

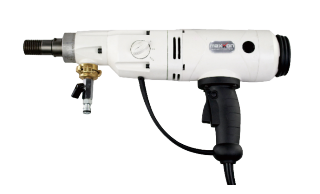

DBC‑22 is a high‑power brushed hand‑held diamond core drill, supporting dual‑voltage 110V/220V. It can be operated free‑hand or mounted on drill rig stand. External carbon brushes for easy maintenance and replacement. Equipped with 3‑speed oil‑bath gearbox with speed 580/1400/2800rpm, max drilling diameter up to 160mm for concrete and 200mm for stone. It comes with anti‑vibration handle and anti‑vibration breast support, magnesium alloy housing, slipping clutch plus electric‑clutch dual overload protection, built‑in PRCD leakage protection, soft & smart start, oil level indicator and adjustable front handle. Wet & dry drilling are both available. Optional accessories: pressure water tank, wet‑dry vacuum cleaner, vacuum pump and water collecting ring. Suitable for various concrete and stone drilling projects.
