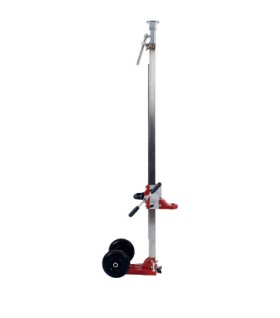

Universal Drill Rig DUVD.330.LST

DUVD‑330‑LST universal drill rig, max drilling diameter Φ330mm. Max telescope extend length 3500mm, steel column 50×50×1700mm. Vertical travel length 1500mm, horizontal travel length 750mm. Fitted with Φ150mm water collecting ring, net weight 30kgs, dimension 2000×300×400mm. Supports vertical and horizontal drilling. Adopts extra long telescopic column, fitted with transport wheels. Water collecting ring collects waste water during coring, suitable for concrete core drilling in various working conditions.

Model:
Universal Drill Rig DUVD.330.LST
Brand:
LINK

Availability:

Quantity:



Inquire Add to Basket

Universal Core Drill Rig Diamond Drill Stand Concrete Core Drill Support

Product Description

Art number	Telescope extend length	Max	Steel column	Travel length vertical
1051330	3500mm	Φ330mm	50×50×1700mm	1500mm
Travel length horizontal	Water collecting ring	N.W	Dimension
750mm	Φ150mm	30kg	2000×300×400mm

DUVD‑330‑LST universal drill rig, max drilling diameter Φ330mm. Max telescope extend length 3500mm, steel column 50×50×1700mm. Vertical travel length 1500mm, horizontal travel length 750mm. Fitted with Φ150mm water collecting ring, net weight 30kgs, dimension 2000×300×400mm. Supports vertical and horizontal drilling. Adopts extra long telescopic column, fitted with transport wheels. Water collecting ring collects waste water during coring, suitable for concrete core drilling in various working conditions.
