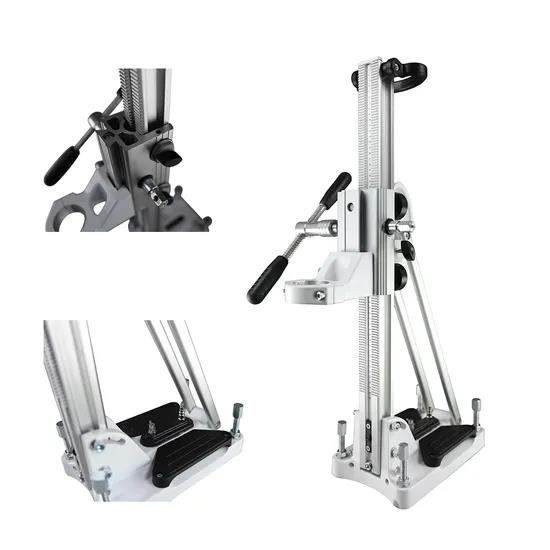

Drill rig VKP-130

VKP‑130 diamond core drill rig, max drill bit diameter 132mm. Column size 50×50×750mm, travel length 450mm, fitted for ∅60mm motor bracket. It supports 0‑45° angle adjustment, optional vacuum base and sliding carriage. Adopt quick‑connect motor bracket, built‑in water level and drill bit centering device. Equipped with “one‑for‑all” 19mm hexagon lever, easy‑carry handle and parking brake on carriage. Light‑weight and easy assembly, compatible with multiple hand‑held diamond core drilling motors.

Model:
Drill rig VKP-130
Brand:
LINK

Availability:

Quantity:



Inquire Add to Basket

Petrol Core Drilling Motor Gasoline Diamond Core Drill Portable Petrol Concrete Drill

Product Description

Art number	MaxΦ	Column	Travellength
1010130	132mm	5050750mm	450mm
Mounting	Net Weight	Dimension
Φ60mm bracket	11kg	840250290mm

VKP‑130 diamond core drill rig, max drill bit diameter 132mm. Column size 50×50×750mm, travel length 450mm, fitted for ∅60mm motor bracket. It supports 0‑45° angle adjustment, optional vacuum base and sliding carriage. Adopt quick‑connect motor bracket, built‑in water level and drill bit centering device. Equipped with “one‑for‑all” 19mm hexagon lever, easy‑carry handle and parking brake on carriage. Light‑weight and easy assembly, compatible with multiple hand‑held diamond core drilling motors.
