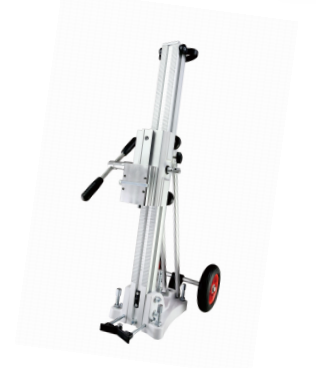

Drill rig UVD-330

UVD‑330 diamond core drill rig, max drill bit diameter 352mm. Column size 70×70×1000mm, travel length 650mm, mounting with 50mm motor plate. It supports 0‑45° angle adjustment, optional roller carriage or sliding carriage. Equipped with quick‑connect motor plate, carriage water level, laser position and drill bit centering device. Comes with “one‑for‑all” 19mm hexagon lever and double stabilisation bars for extra rigidity. Optional planet gear assembly, wheel kit for easy transportation, parking brake fitted on carriage. Robust structure, compatible with medium‑large heavy‑duty diamond core drilling motors.

Model:
Drill rig UVD-330
Brand:
LINK

Availability:

Quantity:



Inquire Add to Basket

Core Drill Rig Heavy Duty Diamond Drill Stand Concrete Core Drill Support

Product Description

Art number	MaxΦ	Column	Travellength
1020330	352mm	70×70×1000mm	650mm
Mounting	Net Weight	Dimension
50mm motor plate	21kg	1100×380×460mm

UVD‑330 diamond core drill rig, max drill bit diameter 352mm. Column size 70×70×1000mm, travel length 650mm, mounting with 50mm motor plate. It supports 0‑45° angle adjustment, optional roller carriage or sliding carriage. Equipped with quick‑connect motor plate, carriage water level, laser position and drill bit centering device. Comes with “one‑for‑all” 19mm hexagon lever and double stabilisation bars for extra rigidity. Optional planet gear assembly, wheel kit for easy transportation, parking brake fitted on carriage. Robust structure, compatible with medium‑large heavy‑duty diamond core drilling motors.
