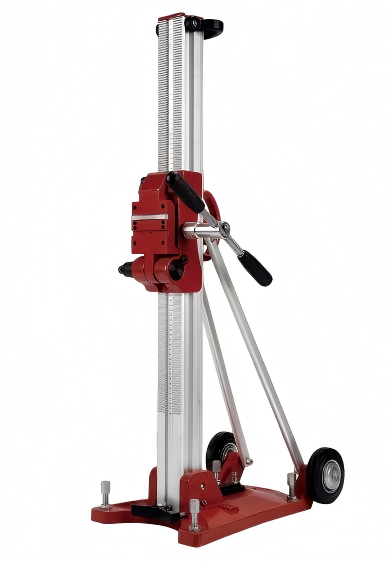

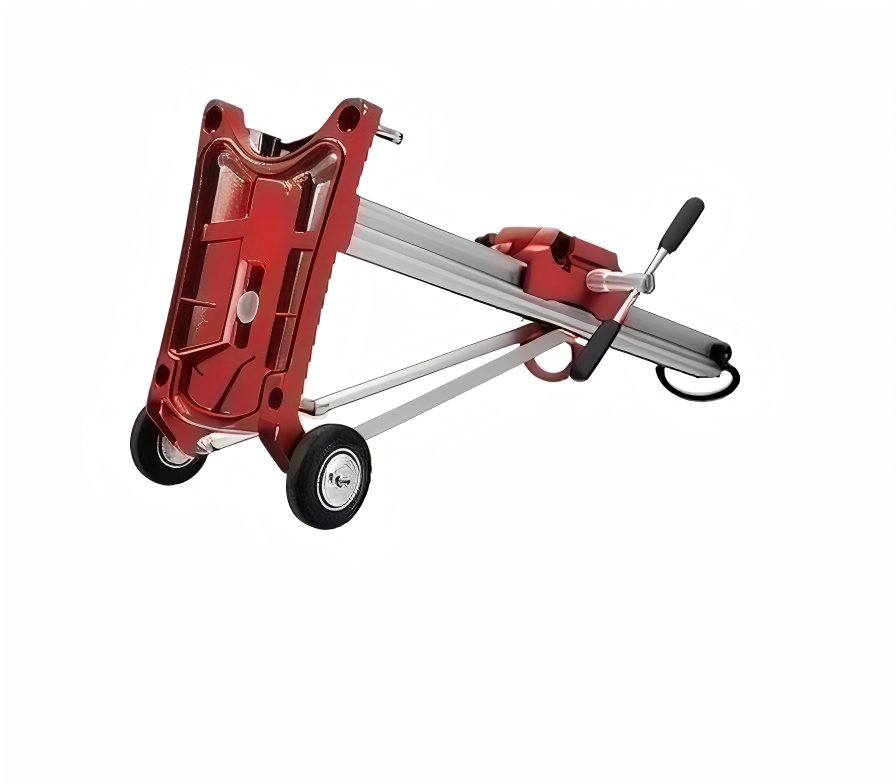

Drill rig TCD-400

TCD‑400 core drill rig, max drilling diameter Φ402mm. Column size 70×70×1000mm, travel length 650mm, fitted with quick release and functional motor plate. Net weight 17kgs, dimension 1100×320×460mm. It supports 0-45° angle adjustment, equipped with quick connect bracket and carriage with slide blocks. Built-in water level on carriage, laser position and drill bit centering device. Adopts "one for all" lever with 19mm hexagon and double stabilisation bars for extra rigidity. Parking brake fitted on carriage. Optional vacuum base. Lightweight design for easy transport, ideal for diamond concrete core drilling projects.

Model:
Drill rig TCD‑400
Brand:
LINK

Availability:

Quantity:



Inquire Add to Basket

Core Drill Rig Diamond Drill Stand Concrete Core Drill Support

Product Description

Art number	MaxΦ	Column	Travellength
1030400	402mm	70×70×1000mm	650mm
Mounting	Net Weight	Dimension
Quick release and functional motor plate	17kg	1100×320×460mm

TCD‑400 core drill rig, max drilling diameter Φ402mm. Column size 70×70×1000mm, travel length 650mm, fitted with quick release and functional motor plate. Net weight 17kgs, dimension 1100×320×460mm. It supports 0-45° angle adjustment, equipped with quick connect bracket and carriage with slide blocks. Built-in water level on carriage, laser position and drill bit centering device. Adopts "one for all" lever with 19mm hexagon and double stabilisation bars for extra rigidity. Parking brake fitted on carriage. Optional vacuum base. Lightweight design for easy transport, ideal for diamond concrete core drilling projects.
