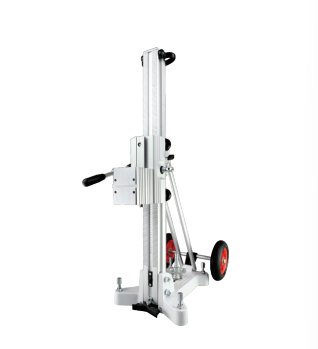

Drill Rig UVD.440

UVD‑440 diamond core drill rig, max drill bit diameter 452mm. Column size 70×70×1000mm, travel length 650mm, mounting with multifunctional motor plate. It supports 0‑45° angle adjustment, optional roller carriage or sliding carriage. Equipped with quick‑connect motor plate, carriage water level, laser position and drill bit centering device. Comes with “one‑for‑all” 19mm hexagon lever and double stabilisation bars for extra rigidity. Wheel kit for easy transportation, parking brake fitted on carriage. The multifunctional motor plate is compatible with various drilling motors, high load capacity, suitable for large‑diameter concrete core drilling.

Model:
Drill rig UVD.440
Brand:
LINK

Availability:

Quantity:



Inquire Add to Basket

Core Drill Rig Heavy Duty Diamond Drill Stand Concrete Core Drill Support

Product Description

Art number	MaxΦ	Column	Travellength
1020440	452mm	70×70×1000mm	650mm
Mounting	Net Weight	Dimension
multifunctional motor plate	21kg	1100×340×390mm

UVD‑440 diamond core drill rig, max drill bit diameter 452mm. Column size 70×70×1000mm, travel length 650mm, mounting with multifunctional motor plate. It supports 0‑45° angle adjustment, optional roller carriage or sliding carriage. Equipped with quick‑connect motor plate, carriage water level, laser position and drill bit centering device. Comes with “one‑for‑all” 19mm hexagon lever and double stabilisation bars for extra rigidity. Wheel kit for easy transportation, parking brake fitted on carriage. The multifunctional motor plate is compatible with various drilling motors, high load capacity, suitable for large‑diameter concrete core drilling.
