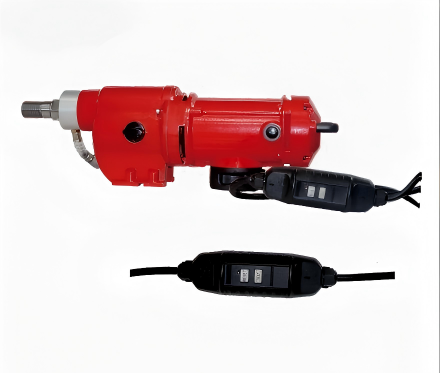

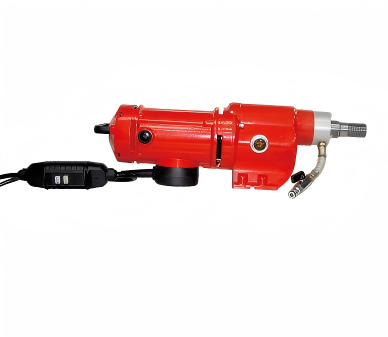

Core Drilling Motor DBC‑35(MW)

DBC‑35(MW) is a diamond core drilling motor with 3500W power, supporting 110V/220V dual‑voltage. Max concrete drilling diameter reaches 500mm. It adopts 3‑speed shifting, high‑accurate gear box and new‑material armature. Equipped with soft‑start function, dual protection of electric‑clutch overload protection and mechanical slipping clutch. Built‑in PRCD leakage protection, with oil level indicator for oil‑change maintenance. It supports free‑hand operation or drill‑rig mounting. Optional accessories: pressure water tank, wet‑dry vacuum cleaner, vacuum pump and water collecting ring. Ideal for heavy‑duty large‑diameter concrete hole‑opening projects.

Model:
Core Drilling Motor DBC‑33(Brushless Motor)
Brand:
LINK

Availability:

Quantity:



Inquire Add to Basket

Bryshless Diamond core drill Core Drilling Motor Diamond core drill Concrete Core Drill Machine

Product Description

Art number	Power	Voltage
1113033-1	3300W	110V/220V
Max.φconcrete	Speed	Weight
500mm	220/530/800rpm	16KG

	1‑SPEED	2‑SPEED	3‑SPEED
Speed(RPM)	220	530	800
Max.φconcrete(mm)	500	300	120

DBC‑35(MW) is a diamond core drilling motor with 3500W power, supporting 110V/220V dual‑voltage. Max concrete drilling diameter reaches 500mm. It adopts 3‑speed shifting, high‑accurate gear box and new‑material armature. Equipped with soft‑start function, dual protection of electric‑clutch overload protection and mechanical slipping clutch. Built‑in PRCD leakage protection, with oil level indicator for oil‑change maintenance. It supports free‑hand operation or drill‑rig mounting. Optional accessories: pressure water tank, wet‑dry vacuum cleaner, vacuum pump and water collecting ring. Ideal for heavy‑duty large‑diameter concrete hole‑opening projects.
